Beamsplitter Plates
Feature and advantage:
- Simple, Compact Structure
- Customizable Split Ratios
- Broad Wavelength Compatibility
- Minimal Beam Deviation
PRODUCT
Detail

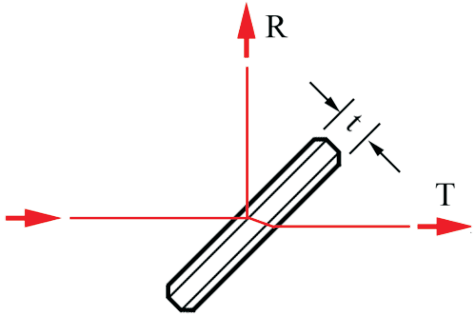

The beamsplitter plate is an optical component that decomposes incident light into transmitted and reflected light in a certain ratio through an optical coating. The incidence of angle of beam is usually 45° . One side is coated with a partial reflection coating, another side is coated with an anti-reflection coating. It can split the incident light into two parts: reflected light and transmitted light.
|
Specifications
|
|
|
Material
|
N-BK7 or H-K9L glassed
|
|
Dimension Tolerance (mm)
|
±0.1 (General), +0.0/-0.02(High Precision)
|
|
Surface Quality
|
60/40 (General), 20/10 (High Precision)
|
|
Clear Aperture
|
>90% (General), >97% (High Precision)
|
|
Parallelism
|
<3arc min. (General), <10arc sec.(High Precision
|
|
Flatness (per 25mm@633nm)
|
<λ/2 (General), <λ/10 (High Precision)
|
|
T/R
|
Typical 50/50%±5%（random polarization）
|
|
Coating
|
One side is partial reflection coated, another is AR coated
|
|
Wavelength
|
Narrow band 488，532，633，808，1064，1550nm ect.；Broadband:450-650，650-900，900-1200，1200-1550，1500-1610nm
|
