Low Order Waveplates
Feature and advantage:
- Single material, simple structure
- High angular sensitivity
- High damage threshold
- Low cost
PRODUCT
Detail

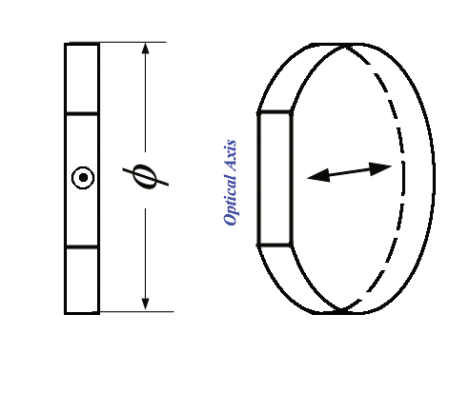

The low (multiple) order waveplate is designed to give a retardance of several full waves, plus the desired fraction. This results in a single, physically robust component with desired performance. However, even small variation in wavelength or temperature will result in significant changes in the desired fractional retardance. It is the most cost-efficient waveplate.
|
Common Specifications
|
|
|
Material
|
Quartz
|
|
Diameter Tolerance (mm)
|
+0.0/-0.2 (General)
|
|
Clear Aperture
|
>90%
|
|
Wavefront distortion
|
λ/8
|
|
Retardation tolerance
|
See below table
|
|
Surface Quality
|
20/10
|
|
Parallelism
|
3 sec.
|
|
Coating
|
AR Coating, R<0.2%
|
Enlumen provides standard waveplate wavelenths listed as below. Also, provides customized wavelenths between 200 and 2300nm.
|
266
|
355
|
400
|
532
|
632.8
|
780
|
808
|
850
|
980
|
1064
|
1310
|
1480
|
1550
|
Standard sizes are below, order by indicating PN and wavelength.
|
Quarter
|
Half
|
Diameter
|
|
P/N
|
P/N
|
(mm)
|
|
WPL210Q
|
WPL210H
|
10
|
|
WPL212Q
|
WPL212H
|
12.7
|
|
WPL215Q
|
WPL215H
|
15
|
|
WPL220Q
|
WPL220H
|
20
|
|
WPL225Q
|
WPL225H
|
25.4
|
|
WPL230Q
|
WPL230H
|
30
|
