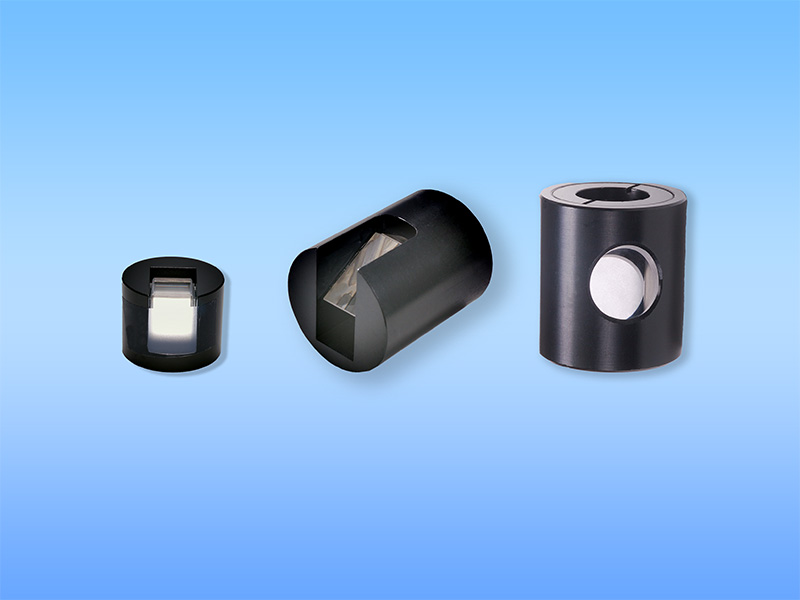

High Transmission Glan Laser Polarizer
Feature and advantage:
- Two Prisms and Air-Spaced
- Brewster Angle cutting
- High Polarization Purity and High Transmittance
- With Escape Window
- Suitable for high power application
PRODUCT
Detail
By using Calcite or YVO4, we design the crystal prisms with Brewster angle cutting, the transmittance of the Glan Laser polarizer can be increased from 85% to 95%.
Features: Air gap, Brewster angle cutting, high extinction ratio, escape window, suitable for high-power applications, high transmittance

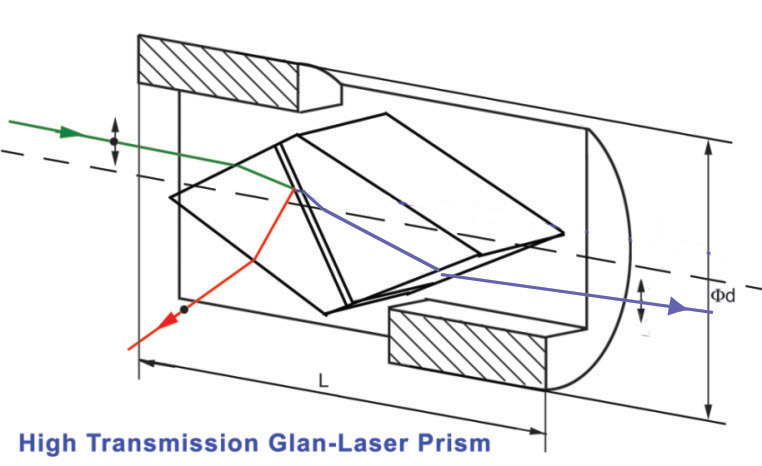

The structure shows below:
Enlumen offers the following standard products for selection.
|
P/N
|
Material
|
Mount diameter (mm)
|
Mount length(mm)
|
CA(mm)
|
|
GLH7006
|
Calcite
|
25.4
|
25
|
5
|
|
GLH7008
|
Calcite
|
25.4
|
32
|
7
|
|
GLH7010
|
Calcite
|
30
|
38
|
9
|
|
GLH8006
|
YVO4
|
25.4
|
28
|
5
|
|
GLH8008
|
YVO4
|
30
|
38
|
7
|
|
GLH8010
|
YVO4
|
38
|
45
|
9
|
