Glan Taylor Polarizers
Feature and advantage:
- Two Prisms and Air-Spaced
- Close to Brewster Angle cutting
- High Polarization Purity
- Short Length, No Escape Window
- Suitable for low to medium power application
PRODUCT
Detail

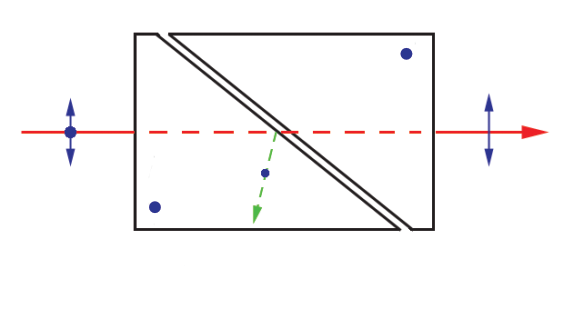

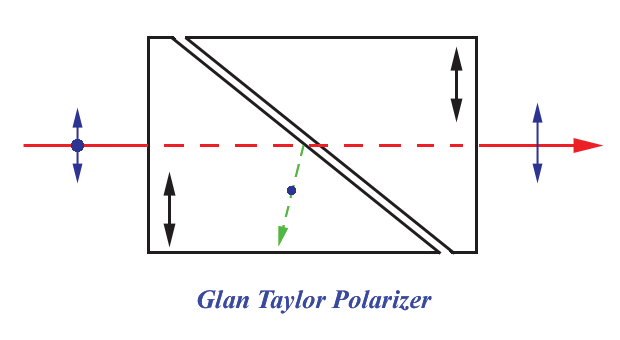

The Glan-Taylor polarizer is a polarization optical component designed based on the principle of birefringence. It consists of two birefringent crystal prisms with parallel optical axes. The angle between the inclined surfaces of the prisms is designed according to the refractive index, so that the ordinary light (o light) and extraordinary light (e light) separated at the bonding surface, thereby achieving the separation of polarized light. Its application scenarios include polarized light microscopes, material surface stress analyzers, and polarization state detection in optical communications.
a-BBO or Calcite YVO4
|
Common Specifications
|
|
|
Material:
|
α-BBO，Calcite or YVO4
|
|
Wavelength Range:
|
α-BBO：200-3500nm，Calcite：350-2300nm， YVO4 ：500-4000nm
|
|
Extinction Ratio：
|
α-BBO：＜5×10-6，Calcite or YVO4 ：＜5×10-5
|
|
Surface Quality：
|
20-10
|
|
Beam Deviation:
|
＜3 arc minutes
|
|
Wavefornt Distortion:
|
λ/4@633nm
|
|
Damage Threshold：
|
＞500MW/cm2
|
|
Coating：
|
Single Layer MgF2 Coating
|
|
Holder：
|
Black Anodized Aluminum
|
Enlumen offers the following standard products for selection.
|
P/N
|
Material
|
Wavelength(nm)
|
Field angle(°)
|
Mount diameter (mm)
|
Mount Length(mm)
|
CA(mm)
|
|
GTP6206
|
a-BBO
|
200-270nm(MgF2@245nm )
|
>6.0
|
15
|
8
|
5
|
|
GTP6208
|
a-BBO
|
25.4
|
10
|
7
|
||
|
GTP6210
|
a-BBO
|
25.4
|
11
|
9
|
||
|
GTP6215
|
a-BBO
|
30
|
15
|
13.5
|
||
|
GTP6220
|
a-BBO
|
38
|
19
|
18
|
||
|
GTP6306
|
a-BBO
|
300-700nm (MgF2@532nm)
|
>6.0
|
15
|
8
|
5
|
|
GTP6308
|
a-BBO
|
25.4
|
10
|
7
|
||
|
GTP6310
|
a-BBO
|
25.4
|
11
|
9
|
||
|
GTP6315
|
a-BBO
|
30
|
15
|
13.5
|
||
|
GTP6320
|
a-BBO
|
38
|
19
|
18
|
||
|
GTP6706
|
a-BBO
|
700-3000nm(MgF2@1064nm)
|
>6.0
|
15
|
8
|
5
|
|
GTP6708
|
a-BBO
|
25.4
|
10
|
7
|
||
|
GTP6710
|
a-BBO
|
25.4
|
11
|
9
|
||
|
GTP6715
|
a-BBO
|
30
|
15
|
13.5
|
||
|
GTP6720
|
a-BBO
|
38
|
19
|
18
|
||
|
GTP7006
|
Calcite
|
350-2300(MgF2@1064nm)
|
>7.7°
|
15
|
8
|
5
|
|
GTP7008
|
Calcite
|
25.4
|
10
|
7
|
||
|
GTP7010
|
Calcite
|
25.4
|
11
|
9
|
||
|
GTP7015
|
Calcite
|
30
|
15
|
13.5
|
||
|
GTP7020
|
Calcite
|
38
|
19
|
18
|
||
|
GTP8006
|
YVO4
|
500-4000(MgF2@1300nm)
|
<=6.5
|
15
|
7
|
5
|
|
GTP8008
|
YVO4
|
25.4
|
9
|
7
|
||
|
GTP8010
|
YVO4
|
25.4
|
10
|
9
|
||
|
GTP8015
|
YVO4
|
30
|
12
|
13.5
|
||
|
GTP8020
|
YVO4
|
38
|
15
|
18
|
