High Power Polarization Cube BeamSplitter
Feature and advantage:
- Compact Cube Structure and Optical Bonded
- Polarization-Dependent Beam Splitting
- Broadband or Narrowband Operation
- Efficient Light Utilization
- High Extinction Ratio and High Damage Threshold
PRODUCT
Detail
To increase the laser damage threshold , Enlumen use optically contacting technology rather than cementing.
Damage Threshold:
Pulse laser：20J / cm ^2 @ 1064nm 20ns，20Hz
CW laser： 2.5MW/cm^2 @CW
|
Common Specifications
|
|
|
Material
|
H-K9L,H-ZF1 or H-ZF2 for broadband
|
|
Diameter Tolerance (mm)
|
+0.0/-0.2 (General)
|
|
Flatness
|
λ/4
|
|
Surface Quality
|
60/40
|
|
Beam Deviations
|
3 arc min.
|
|
Extinctio Ratio
|
>1000:1
|
|
Transmittance
|
Tp>95%(Narrowband),Tp>90%(Broadband)
|
|
Reflectance
|
Rs>99.5%
|
|
Coating
|
Hypotenuse PBS coating, input and output sides AR coating
|
Standard Wavelength Narrowband： 532,632.8,980,1064nm
Standard Wavelength Broadband： 450-680, 650-850，900-1200nm

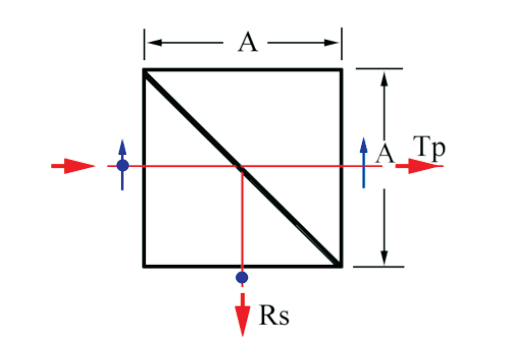

Standard sizes are listed below. Custom-made other wavelength ranges is available.
|
Narrowbad P/N
|
Broadband P/N
|
Sizes（mm）
|
|
PBS1401
|
PBS5401
|
3.2×3.2×3.2
|
|
PBS1402
|
PBS5402
|
5×5×5
|
|
PBS1403
|
PBS5403
|
10×10×10
|
|
PBS1404
|
PBS5404
|
12.7×12.7×12.7
|
|
PBS1405
|
PBS5405
|
15×15×15
|
|
PBS1406
|
PBS5406
|
20×20×20
|
|
PBS1407
|
PBS5407
|
25.4×25.4×25.4
|
