Broadband polarization beam combiners
Features and advantages:
- Two YVO4 crystal prisms,Air Spaced structure
- Wide spectral range: 400 5000 nm
- High damage threshold
- Excellent stability
PRODUCT
Detail

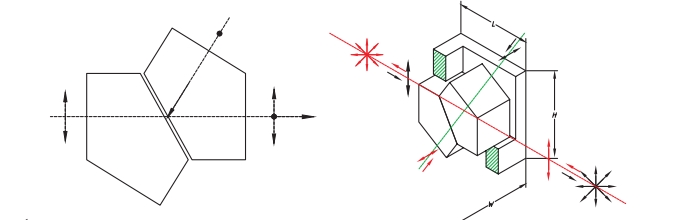

The broadband polarized beam combiner is composed of two prisms made of YVO4 or Calcite. The Calcite combiner can combine polarized incident light at 45 degrees and 90 degrees angles. It can be referred to the structure of the Glan Thompson polarizer. The polarized combiner made of YVO4 crystals can be made with air gap structure, so it can withstand a higher laser power. The angle between the two incident polarized beams is 100.6 degrees.
|
Common Specifications
|
|
|
Material:
|
Quartz
|
|
Wavelength Range:
|
YVO4： 400-5000nm
|
|
Surface Quality：
|
20-10
|
|
Beam Deviation:
|
＜3 arc minutes
|
|
Wavefornt Distortion:
|
λ/4@633nm
|
|
Damage Threshold：
|
＞500MW/cm2
|
|
Coating：
|
Single Layer MgF2 Coating@1550nm
|
|
Holder：
|
Black Anodized Aluminum
|
Enlumen offers the following standard products for selection.
|
P/N
|
Mount Width (mm)
|
Mount Height（mm）
|
Mount Length(mm)
|
Crystal Size(mm)
|
CA(mm)
|
|
PBC8006
|
15
|
15
|
15
|
6
|
5
|
|
PBC8008
|
15
|
20
|
18
|
8
|
7
|
|
PBC80010
|
20
|
25
|
22
|
10
|
9
|
|
PBC8012
|
20
|
30
|
25
|
12
|
10.8
|
|
PBC8015
|
25
|
35
|
35
|
15
|
13.5
|
