High Extiniction Polarization Cube BeamSplitter
Feature and advantage:
- Compact Cube Structure
- Polarization-Dependent Beam Splitting
- Broadband or Narrowband Operation
- Efficient Light Utilization
- High Extinction Ratio
PRODUCT
Detail
Enlumen provides high extinction polarization beamsplitter cubes.
|
Common Specifications
|
|
|
Material
|
H-K9L,H-ZF1 or H-ZF2 for broadband
|
|
Diameter Tolerance (mm)
|
+0.0/-0.2 (General)
|
|
Flatness
|
λ/4
|
|
Surface Quality
|
60/40
|
|
Beam Deviations
|
3 arc min.
|
|
Extinctio Ratio
|
>3000:1(Narrowband)，>1000:1(Broadband)
|
|
Transmittance
|
Tp>96%(Narrowband)Tp>90%(Broadband)
|
|
Reflectance
|
Rs>99.5%
|
|
Coating
|
Hypotenuse PBS coating, input and output sides AR coating
|
Standard Wavelength Narrowband： 532,632.8,980,1064nm
Standard Wavelength Broadband： 450-680, 650-850，900-1200nm
Standard sizes are listed below. Custom-made other wavelength ranges is available.
|
Narrowband P/N
|
Broadband P/N
|

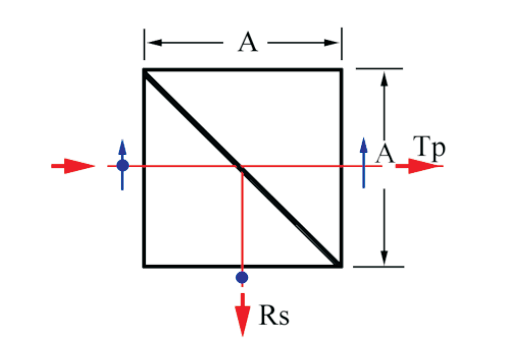

Sizes（mm）
|
|
PBS1301
|
PBS5301
|
3.2×3.2×3.2
|
|
PBS1302
|
PBS5302
|
5×5×5
|
|
PBS1303
|
PBS5303
|
10×10×10
|
|
PBS1304
|
PBS5304
|
12.7×12.7×12.7
|
|
PBS1305
|
PBS5305
|
15×15×15
|
|
PBS1306
|
PBS5306
|
20×20×20
|
|
PBS1307
|
PBS5307
|
25.4×25.4×25.4
|
|
PBS1308
|
PBS5308
|
38.1×38.1×38.1
|
|
PBS1309
|
PBS5309
|
50.8×50.8×50.8
|
