True Zero Order Waveplates
Feature and advantage:
- High Precise Retardation Control
- Insensitivity to Angle of Incidence
- Exceptional Wavelength Stability
- Low Sensitivity to Temperature Variations
PRODUCT
Detail

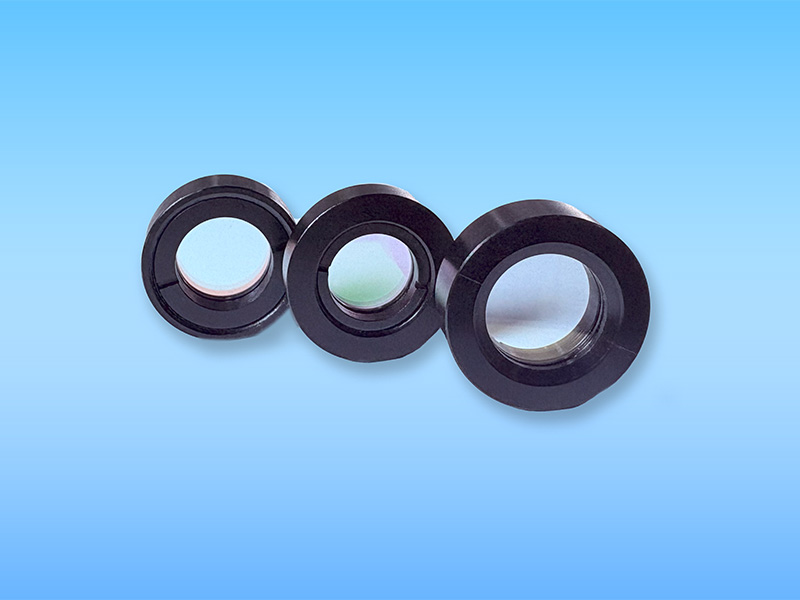

Enlumen provides two kinds of true zero order waveplate.One is constructed of a true zero order waveplate and a N-BK7 glass substrate. Another is only thin true zero order waveplate. Comparing to low order and zero order waveplate, the retardation is better and it is not sensitive to temperature changes. Since single plate is very thin and easy to be damaged, the glass support option is more popular.
Enlumen provided the standard wavelengths as list below. We can also provide customized wavelength between 500-2300nm.
|
Half
|
532
|
632.8
|
780
|
808
|
850
|
980
|
1064
|
1310
|
1480
|
|
Quarter
|
632.8
|
780
|
808
|
850
|
980
|
1064
|
1310
|
1480
|
1550
|
Standard sizes are below, order by indicating PN and wavelength.Mount is available if needed.
|
Quarter
|
Half
|
Diameter
|
|
P/N
|
P/N
|
(mm)
|
|
WPF210Q
|
WPF210H
|
10
|
|
WPF212Q
|
WPF212H
|
12.7
|
|
WPF215Q
|
WPF215H
|
15
|
|
WPF220Q
|
WPF220H
|
20
|
|
WPF225Q
|
WPF225H
|
25.4
|
|
WPF230Q
|
WPF230H
|
30
|
Single plate is too thin, so the diameter can not be large. Standard sizes are below, order by indicating PN and wavelength.
|
Quarter
|
Half
|
Diameter
|
|
P/N
|
P/N
|
(mm)
|
|
WPS210Q
|
WPS210H
|
10
|
|
WPS212Q
|
WPS212H
|
12.7
|
|
WPS215Q
|
WPS215H
|
15
|
|
WPS220Q
|
WPS220H
|
20
|
