Calcite Crystal
Features and advantages:
- Large Birefringence

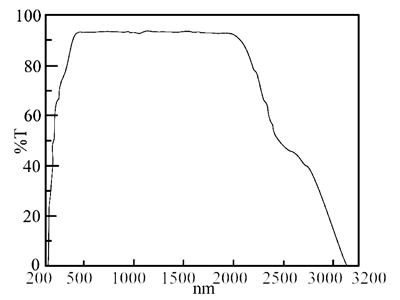

- Wide Spectral Range and High Transmittance
- Pure Composition
PRODUCT
Detail
Calcite is a carbonate mineral and the most stable polymorph of calcium carbonate (CaCO3).It's a negative uniaxial crystal and mostly used as visible and near IR polarizers. It has high birefringence, wide spectral transmission and availability in reasonably sized rhombs.
|
Calcite Properties
|
|
|
Wavelength
|
350~2300nm
|
|
Density
|
2.7 g/cm 2
|
|
Mohs Hardness
|
3
|
|
Thermal Conductivity
|
αa=24.39 X10-6/K
|
|
ac=5.68X10-6/K
|
|
|
Damage Threshold
|
1GW
|
|
Refractive index
|
No= 1.66315，Ne= 1.48854，532nm
|
|
No=1.64237，Ne=1.47968，1064nm
|
|
|
Sellmeier equation (λ in μm)
|
no2=2.69705 + 0.0192064/(λ2-0.01820) - 0.0151624λ2
|
|
ne2=2.18438 + 0.0087309/(λ2-0.01018) - 0.0024411λ2
|
|
|
Standard Specifications
|
|
|
Dimensions（mm）
|
Max. 30-40mm
|
|
Lenght mm
|
Max. 25-35mm
|
|
Surface quality
|
40/20
|
|
Crystal Orientation
|
12′
|
|
Parallelism
|
20″
|
|
Flatness
|
λ/4 @ 633 nm
|
|
Clear aperture
|
＞90%
|
|
Coating
|
P coating or AR coating
|
|
Mount
|
Upon request
|
