Interference Filters
Feature and Advantage:
- High Spectral Selectivity
- High Transmittance and Reflectance
- Chemical Stability and Durability
- High Customization
PRODUCT
Detail

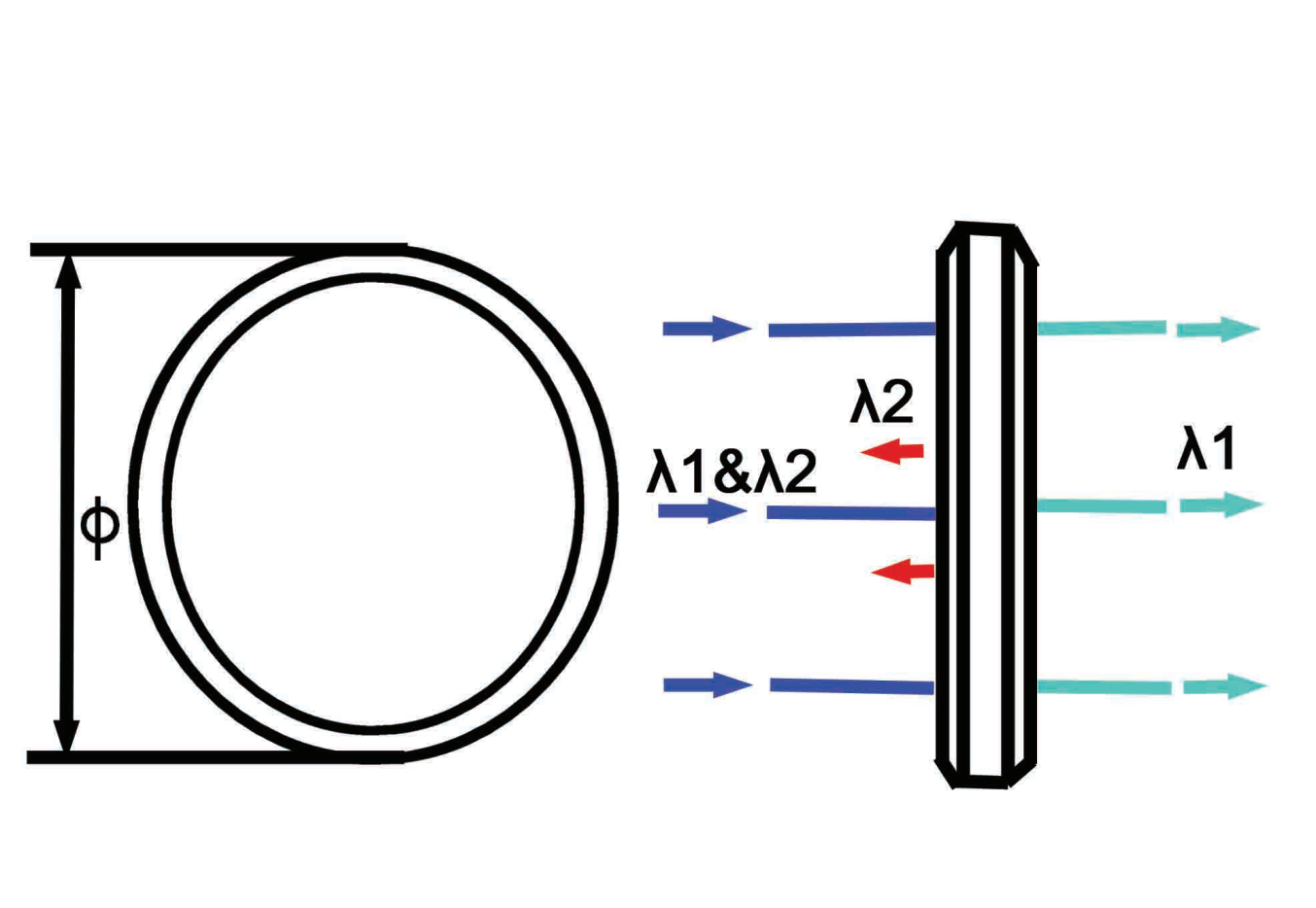

The interference filter is fabricated by alternately depositing multiple layers of media films with different refractive indices on a glass substrate. By utilizing the interference effect when light reflects and transmits between these layers, it selectively allows light of specific wavelengths to pass through while suppressing light of other wavelengths. It is widely applied in optical instruments and spectral analysis, laser and optical communication, biomedical and imaging, industrial and environmental monitoring, etc.
Specifications
|
|
Material
|
Colored glass filter or optical coating glass
|
Typical Diameter (Φmm)
|
12.0, 15.0, 25.0, 25.4, etc.
|
Typical Thickness (mm)
|
2.0 ~ 10.0
|
Dimension Tolerance (mm)
|
±0.2
|

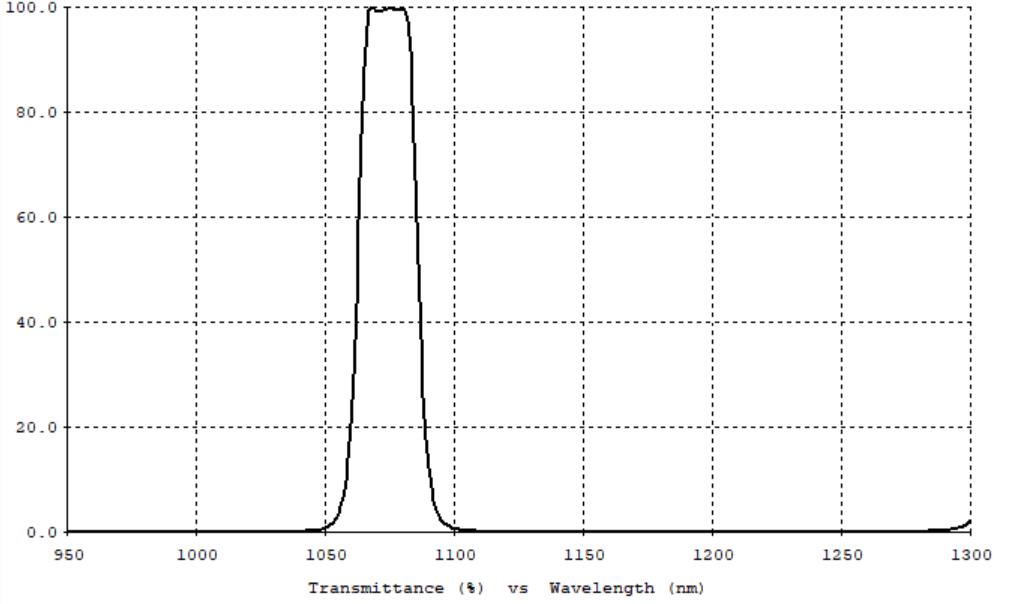

FWHM (nm)
|
10 ~ 80
|
Wavelength Tolerance (nm)
|
±2 ( 10nm FWHM)
|
Surface Quality
|
80/50 (General), 40/20 (High Precision)
|
Wavelength (nm)
|
Upon request
|
