Penta Prisms
Feature and Advantage:
- Stable 90° Light Deflection, Independent of Incident Angle
- Simplified Alignment and Calibration
- No Image Inversion
- Customizable for Diverse Applications
PRODUCT
Detail

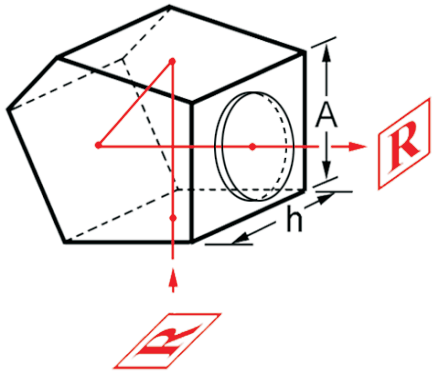

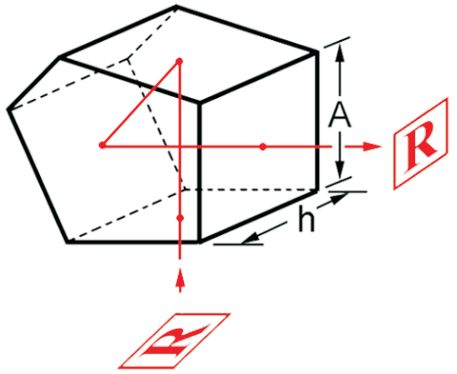

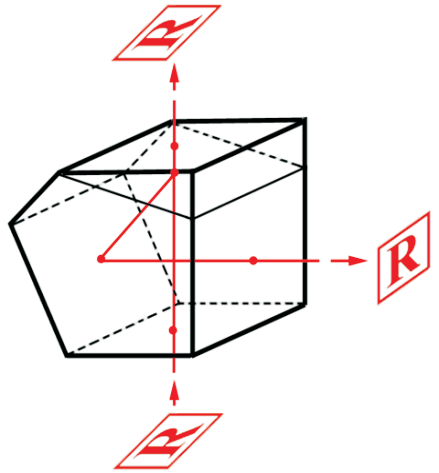

A pentagonal prism is an optical prism with a pentagonal cross-section. After the light is incident on it, it undergoes two reflections and the direction of the outgoing light is precisely perpendicular to the incoming light (with a 90° deviation), and the image does not undergo inversion or reversal, maintaining its original direction. The reflective surface of this prism must be coated with a high-reflection dielectric film or a metal reflective film. If a wedge-shaped mirror is added and a beamsplitter coating is on the first reflective surface of the pentagonal prism, it can be used as a beamsplitter. The ratio of transmission to reflection (T/R) can be 20/80, 30/70, 40/60, 50/50, etc.
It is applied in fields such as surveying and measurement instruments, optical imaging and photography, laser processing and industrial inspection.
|
Specifications
|
|
|
Material
|
Optical glasses
|
|
Dimension Axh (mm)
|
2.5x2.5 - 100.0x100.0
|
|
Dimension Tolerance (mm)
|
±0.2 (General), ±0.05 (High Precision)
|
|
90 Deviation Tolerance
|
<1 min. (General), <3 sec. (High Precision)
|
|
Flatness @633nm
|
λ/2 (General), λ/4 (High Precision)
|
|
Reflection
|
According to the HR coating
|
|
Surface Quality
|
60/40 (General), 20/10 (High Precision)
|
|
Coating on input and output sides
|
uncoated, AR Coating, etc.
|
