Glan Thompson PBS
Features and advantages:
- Birefringent crystal prism and adhesive structure
- High purity of polarization beam splitting
- Applicable to wide spectral range
- Stable splitting ratio
- Suitable for medium and low laser power
PRODUCT
Detail

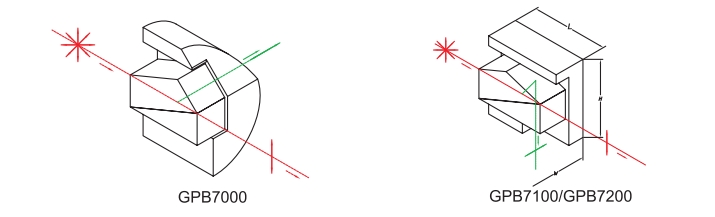

Glan Thompson polarizer can be designed to achieve output beams with angles 45deg or 90deg. If cement a half waveplate, the two output beams can be with the same polarizations.
|
Common Specifications
|
|
|
Material:
|
Calcite
|
|
Wavelength Range:
|
Calcite：350-2300nm
|
|
Extinction Ratio：
|
Calcite：＜5×10-5
|
|
Surface Quality：
|
20-10
|
|
Beam Deviation:
|
＜3 arc minutes
|
|
Wavefornt Distortion:
|
λ/4@633nm
|
|
Damage Threshold：
|
＞500MW/cm2
|
|
Coating：
|
Single Layer MgF2 Coating
|
|
Holder：
|
Black Anodized Aluminum
|
Enlumen offers the following standard products for selection.
|
P/N
|
Angular Field(°)
|
Mount Diameter(mm)
|
Mount Length(mm)
|
Crystal Sizes(mm)
|
CA(mm)
|
|
GPB7006
|
14-16
|
50.8
|
33
|
6
|
5
|
|
GPB7008
|
50.8
|
33
|
8
|
7
|
|
|
GPB7010
|
50.8
|
33
|
10
|
9
|
|
|
GPB7012
|
50.8
|
33
|
12
|
10.8
|
|
|
GPB7015
|
50.8
|
38
|
15
|
13.5
|
|
P/N
|
Angular Field(°)
|
Mount Width (mm)
|
Mount Height（mm）
|
Mount Length(mm)
|
Crystal Sizes(mm)
|
CA(mm)
|
|
GPB7106
|
14-16
|
12
|
16
|
16
|
6
|
5
|
|
GPB7108
|
16
|
20
|
22
|
8
|
7
|
|
|
GPB7110
|
20
|
25
|
26
|
10
|
9
|
|
|
GPB7112
|
20
|
30
|
34
|
12
|
10.8
|
|
|
GPB7115
|
25
|
35
|
40
|
15
|
13.5
|
|
|
GPB7206
|
14-16
|
12
|
16
|
16
|
6
|
5
|
|
GPB7208
|
16
|
20
|
22
|
8
|
7
|
|
|
GPB7210
|
20
|
25
|
26
|
10
|
9
|
|
|
GPB7212
|
20
|
30
|
34
|
12
|
10.8
|
|
|
GPB7215
|
25
|
35
|
40
|
15
|
13.5
|
