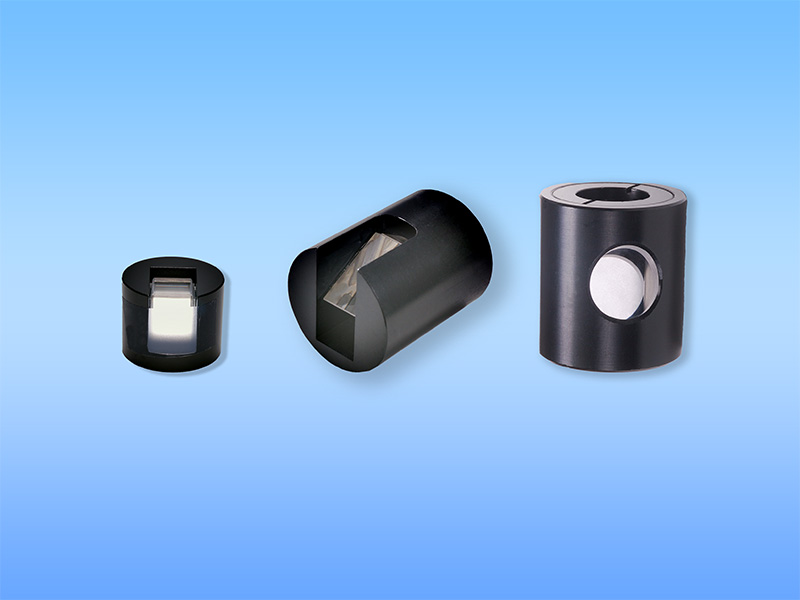

Glan Thompson Polarizers
Feature and advantage:
- Two Prisms Structure and Glued together.
- Medium polarization extinction ratio
- Wide Acceptance Angle
- Suitable for medium and low laser power
PRODUCT
Detail
The Glan Thomson prism is made of two Calcite prisms or two a-BBO prisms cemented together. The a-BBO polarizer can be used from 200 to 1100 nm, and the Calcite polarizer can be used from 350 to 2300 nm. It has a higher extinction ratio and a larger field angle. For example, the field angle of the a-BBO Glan Thomson polarizer is greater than 15 degrees.
|
Common Specifications
|
|
|
Material:
|
α-BBO，Calcite
|
|
Wavelength Range:
|
α-BBO：200-3500nm，Calcite：350-2300nm
|
|
Extinction Ratio：
|
α-BBO：＜5×10-6，Calcite：＜5×10-5
|
|
Surface Quality：
|
20-10
|
|
Beam Deviation:
|
＜3 arc minutes
|
|
Wavefornt Distortion:
|
λ/4@633nm
|
|
Damage Threshold：
|
＞500MW/cm2
|
|
Coating：
|
Single Layer MgF2 Coating
|
|
Holder：
|
Black Anodized Aluminum
|
Enlumen offers the following standard products for selection.
|
P/N
|
Material
|
Field Angle(°)
|
Mount diameter (mm)
|
Mount Length(mm)
|
Crystal sizes(mm)
|
CA(mm)
|
|
GMP6006
|
a-BBO
|
>15
|
15
|
14
|
6
|
5
|
|
GMP6008
|
25.4
|
17
|
8
|
7
|
||
|
GMP6010
|
25.4
|
21
|
10
|
9
|
||
|
GMP6012
|
25.4
|
26
|
12
|
11.4
|
||
|
GMP6015
|
30
|
31
|
15
|
13.5
|
||
|
GMP6020
|
38
|
40
|
20
|
18
|
||
|
GMP7106
|
Calcite
|
14-16
|
15
|
18
|
6
|
5
|
|
GMP7108
|
25.4
|
23
|
8
|
7
|
||
|
GMP7110
|
25.4
|
28
|
10
|
9
|
||
|
GMP7112
|
25.4
|
35
|
12
|
11.4
|
||
|
GMP7115
|
30
|
41
|
15
|
13.5
|
||
|
GMP7206
|
25-28
|
15
|
21
|
6
|
5
|
|
|
GMP7208
|
25.4
|
27
|
8
|
7
|
||
|
GMP7210
|
25.4
|
33
|
10
|
9
|
||
|
GMP7212
|
25.4
|
41
|
12
|
11.4
|
||
|
GMP7215
|
30
|
48
|
15
|
13.5
|
